70~6000MHz Ultra-Wideband Digital RF Signal Source Module | Dual SMA TX Output, Customizable Output Power, Window Frequency Shield Function

70~6000MHz Ultra-Wideband Digital RF Signal Source Module | Dual SMA TX Output, Customizable Output Power, Window Frequency Shield Function

Description

Introduction

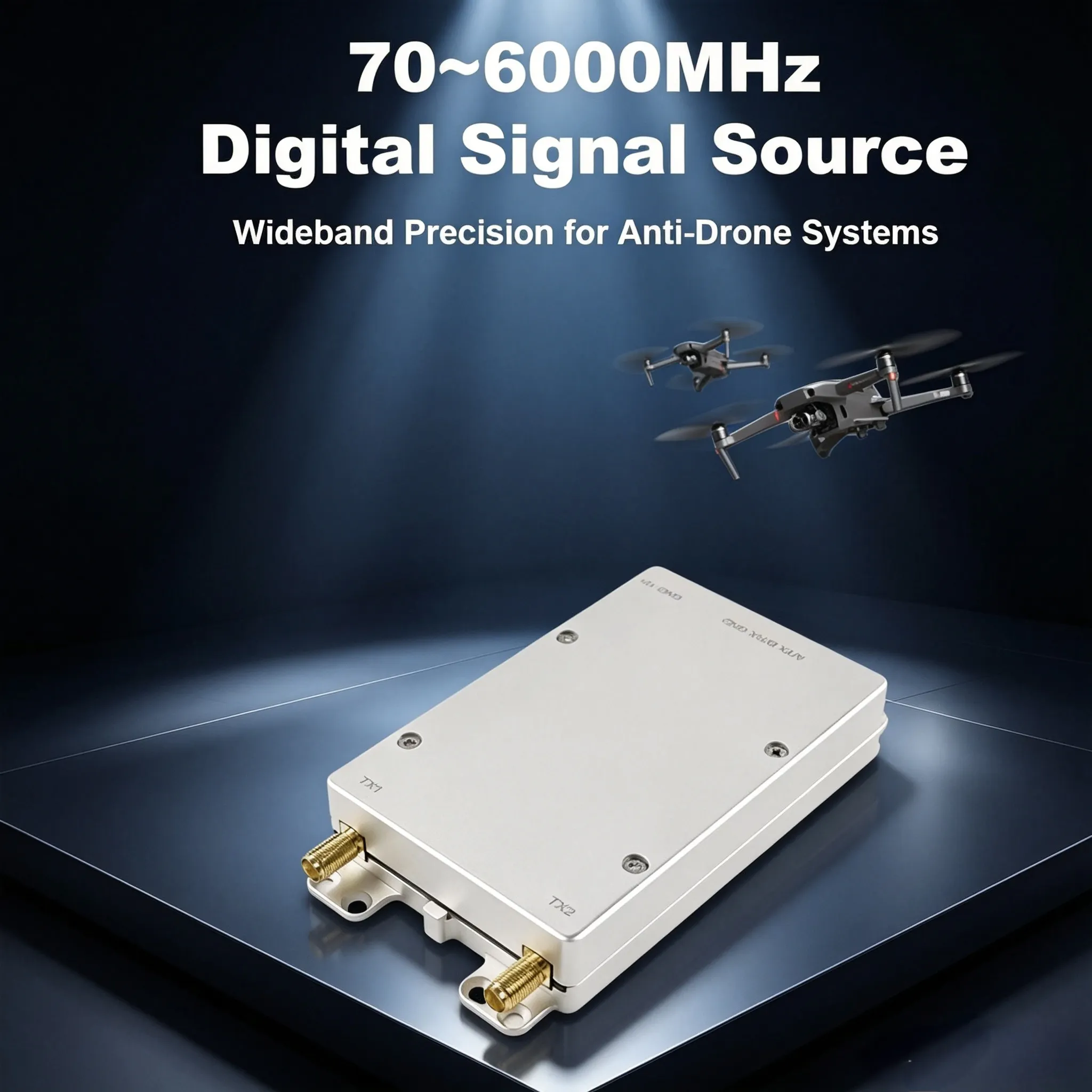

       Our 70MHz to 6GHz Digital RF Signal Source Module is a compact, programmable wideband signal generator designed for RF countermeasure and wireless signal simulation. Covering 70MHz~6000MHz full frequency spectrum, this module provides dual-channel RF output with multiple adjustable waveforms.

Key Features

  1. Ultra-wide frequency coverage: 70MHz ~ 6GHz, covers mainstream drone and communication frequency bands
  2. Dual SMA TX RF output channels, support simultaneous dual-signal transmission
  3. Programmable signal generator with millisecond-level fast frequency sweep
  4. Supports multiple waveforms: LFM, GFSK, noise signal and more
  5. Unique Frequency Window Masking Function: Avoid interfering with your own communication equipment
  6. Customizable RF output power, easy to match with rear-stage power amplifiers
  7. RS485 communication interface, convenient for upper computer remote control & secondary development
  8. Compact modular design, easy to embed into finished equipment
  9. Wide operating temperature range, suitable for outdoor and vehicle-mounted deployment
  10. Factory direct supply, support OEM and personalized parameter customization

Typical Applications

  • Anti-Drone / UAV Countermeasure Jamming System
  • Broadband RF Signal Suppression & Communication Countermeasure Equipment
  • Wireless RF Signal Simulation & Laboratory Testing
  • Fixed-site Security Signal Interception Devices
  • Vehicle-mounted Mobile RF Jamming Equipment
  • Custom RF Test Instrument Integration

Customization Service

      We support flexible parameter customization including output power, waveform parameters and frequency schemes. Open communication protocol is provided to help customers quickly complete system development and product iteration. Contact our sales team for detailed technical datasheet.

performance parameter

Frequency

range

70MHz~6000MHz

Signal bandwidth

50MHz~400MHz

Scanning time

Bandwidth: 2000MHz Time: 2.34ms

Bandwidth: 400MHz Time: 0.123ms

Output power

__10dBm~ + 17dBm(Customizable)

Digital ATT

0~10dB

Supply voltage

12.0V~28.0V(12V)

Operating temperature

__25℃~65℃

Signal style

Monophony, dual-tone, LFM, GFSK, noise







Interference methods

Sweep interference, fixed-

frequency aiming interference,

frequency hopping tracking

interference, broadband barrier

jamming, comb interference, and sweep

interference

Operating current

≤0.5A(12.0V)

Output interface

TX1、TX2(SMA)

Peripheral interface

(See interface appearance diagram)

DB2ERC-2.54-3P

Type-C

5557 solo queue 2P

Appearance dimensions

114mm63.5mm19.5mm××

Size diagram

Dimension drawing 2.1.1 – 1
