Product Introduction

       This compact passive RF drone detection module is a core sensing hardware for low-altitude UAV defense systems, covering full frequency band from 70MHz to 6GHz. It pre-stores massive drone signal fingerprints, capable of automatically identifying mainstream consumer and modified drones including DJI full series, Autel, Hubsan, analog FPV, Walksnail, LoRa and modified LTE drones.
       All signal processing is completed onboard without extra host computing. It outputs real-time drone ID, frequency, RSSI and FFT spectrum data via UDP/TCP network port, and reserves GPIO interface to connect SP8T RF switch for 8/16-channel antenna direction finding, realizing accurate drone azimuth positioning. Miniature low-power design supports quick integration into fixed-site monitoring cabinets, vehicle-mounted anti-drone devices and portable detection equipment.

Key Features

1、Full-band coverage: 70MHz ~ 6GHz, covers all mainstream drone control & image transmission bands
2、Ultra-wide drone compatibility: Recognize DJI, Autel, Hubsan, Lightbridge, Analog FPV, Walksnail, LoRa, Modified LTE, Mavlink datalink signals
3、All-local processing: Complete signal analysis & identification on module, no external computing device required
4、Dual RX RF ports (RX1/RX2), support 2R2T dual receiving mode for low & high frequency split reception
5、Direction Finding Support: GPIO control SP8T RF switch, realize 8/16 antenna azimuth positioning
6、Real-time data output: UDP/TCP network transmission, output drone model, ID, frequency, RSSI & FFT spectrum data
7、Flexible frequency configuration: Custom scan bands, single frequency lock, multi-frequency lock via command line
8、Adjustable gain: RF gain 10~70 for different detection distance demands
9、Mini low-power design: Only 3.3W power consumption, 5V DC power supply

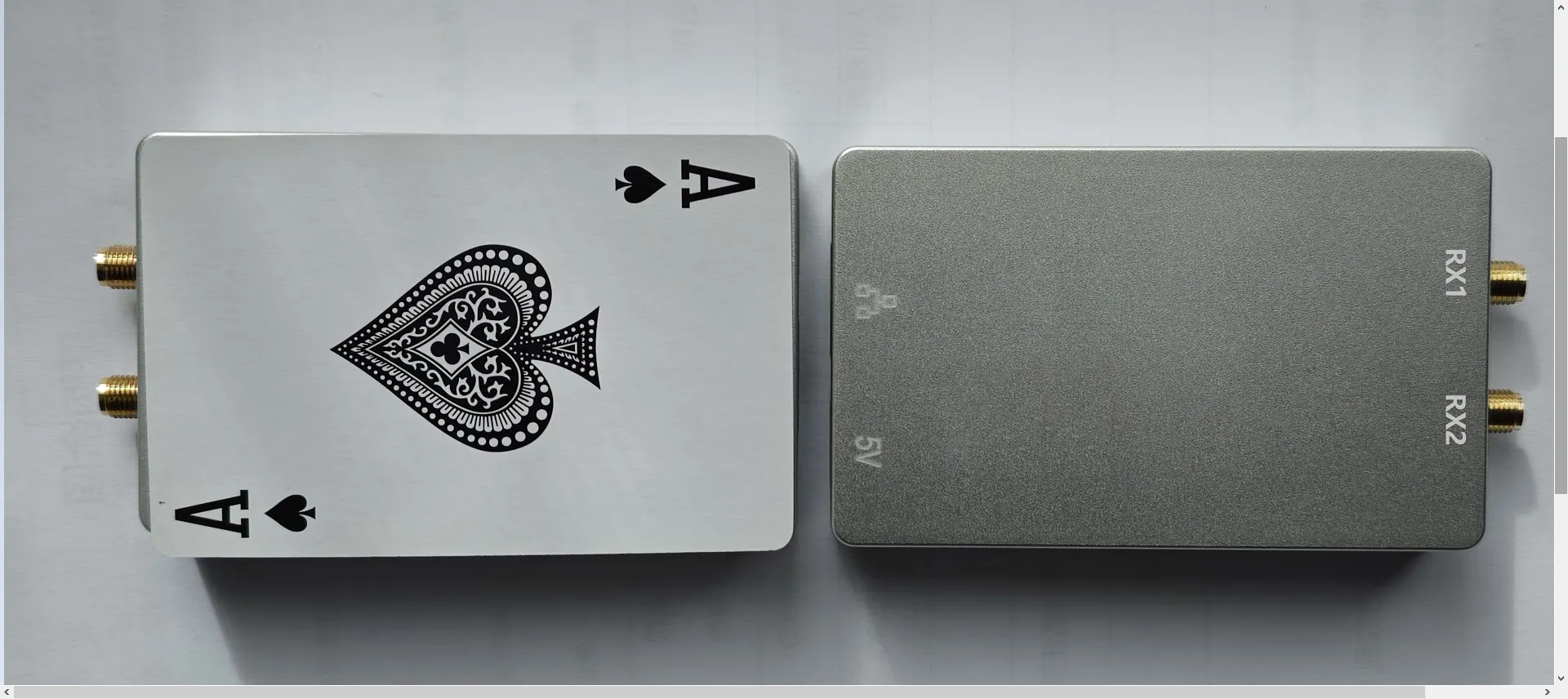

10、Compact dimension: 895518mm, easy to embed into finished equipment
11、Rich control commands: Support reboot, heartbeat switch, IP modification, GPIO trigger, FPV-only scan mode

Complete Technical Specifications

Item	Parameter
Frequency Range	70MHz ~ 6000MHz
Supported Drone Signals	DJI OC1/OC2/OC3/O3+/O4/O4+, Autel full series, Hubsan, Lightbridge, PAL/NTSC Analog FPV, Walksnail, LoRa, ExpressLRS, Modified LTE, Mavlink Datalink
Detection Range	1km ~ 10km (depends on antenna gain)
RF Interface	Dual SMA RX1/RX2, support 1R1T / 2R2T working mode
Communication Interface	UDP/TCP Ethernet, 3.3V TTL serial port (115200 baud rate)
Direction Finding	GPIO control SP8T RF switch, support 8/16 antenna DF
Power Supply	DC 5V
Power Consumption	3.3W (2R2T mode extra 0.5W)
Size	89mm × 55mm × 18mm
Output Data	Drone model, ID, frequency, RSSI value, real-time 2048-point FFT spectrum
Gain Adjustment	10 ~ 70 adjustable via command
Custom Scan Bands	Multiple preset frequency groups, support user-defined custom frequency bands

Application Scenarios

Typical Deployment & Integration

• Fixed-site Low-Altitude Airspace Security (Airport, Prison, Military Base, Government Building)
• Vehicle-Mounted Mobile Anti-Drone Defense System
• Portable Handheld Drone Detector Equipment
• Stadium, Event Venue Temporary UAV Monitoring System
• Critical Infrastructure Protection (Power Station, Oil Depot, Port)
• C-UAS System Integrator Core RF Sensing Hardware
• Laboratory RF Signal Identification & Spectrum Analysis Test Platform
