KGR-JRL1-65
Four-Channel GNSS Anti-Jamming & Anti-Spoofing System

Core Technical Specifications

Below are the full standardized technical parameters of the KGR-JRL1-65 four-channel GNSS anti-jamming system for quick inquiry and project integration:

Product Overview

The KGR-JRL1-65 is a high-performance four-channel GNSS anti-jamming and anti-spoofing system designed for high-precision positioning and timing scenarios under complex electromagnetic interference environments. Adopting professional RF signal processing and intelligent anti-interference algorithms, the device independently completes full-process signal processing including GNSS signal reception, amplification, down-conversion, filtering and interference suppression.

This system supports multi-system GNSS signal reception covering BDS, GPS and GLONASS, and focuses on high-efficiency anti-jamming protection for BDS_B1 and GPS_L1 core frequency bands. It can effectively suppress 3-channel broadband interference as well as sweep frequency, pulse and combined compound interference signals. Built with independent anti-spoofing capability, it thoroughly solves positioning failure and timing deviation caused by malicious jamming and deception attacks.

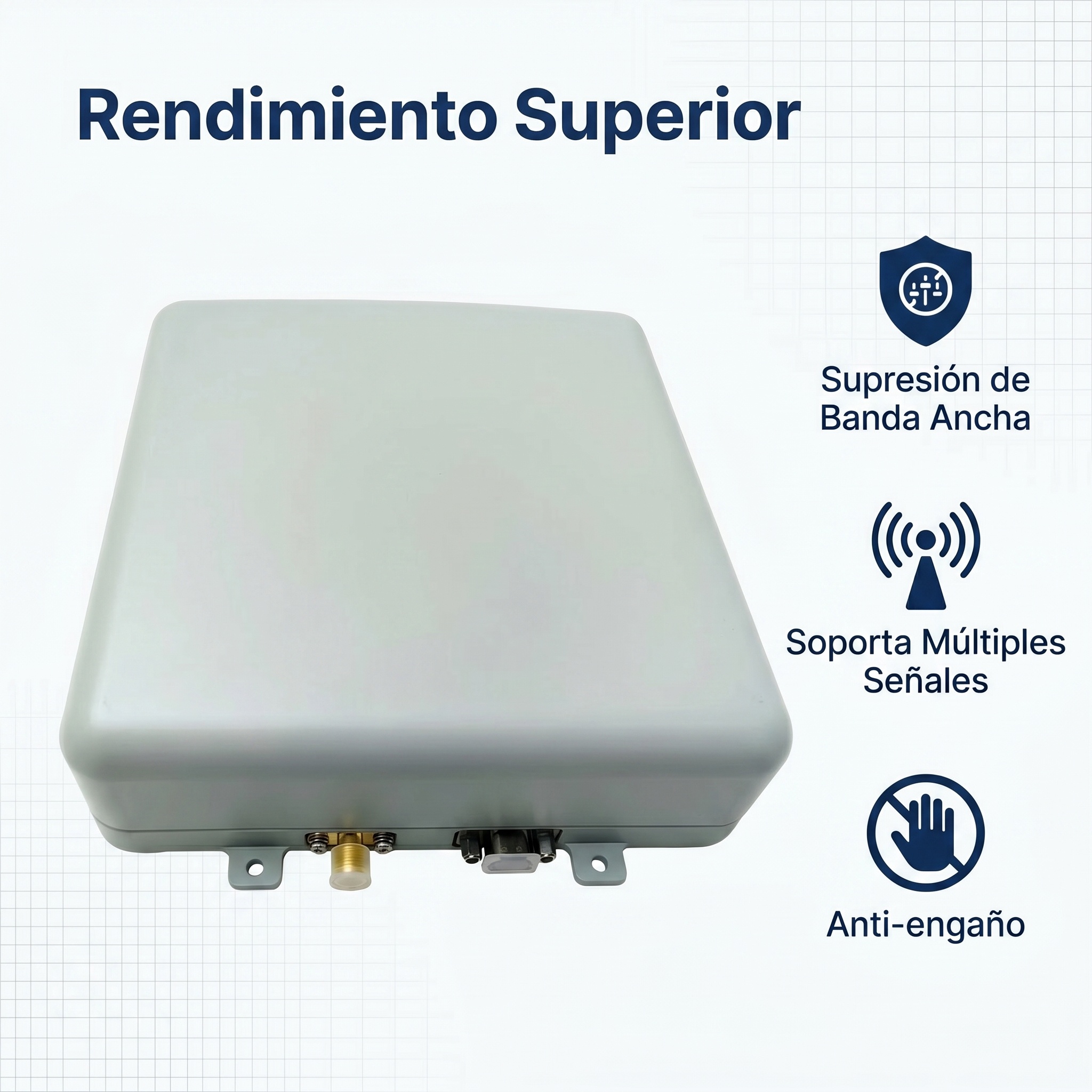

Featuring ultra-compact size, lightweight design and low power consumption, the KGR-JRL1-65 integrates four core components: antenna array, RF module, anti-interference processing unit and receiver module. It supports wide-range DC voltage input and standard serial port output, perfectly adapting to vehicle-mounted, UAV-borne, portable and fixed high-precision PNT (Positioning, Navigation and Timing) equipment integration.

Core Components

The KGR-JRL1-65 adopts a modular integrated architecture, with stable and reliable overall structure, convenient installation and maintenance:

• Antenna Array: 4-channel high-gain antenna array design, ensuring stable reception of weak satellite navigation signals and improving anti-interference baseline performance.

• RF Component: Completes signal amplification, frequency conversion and band filtering, effectively filtering out-of-band clutter and retaining valid GNSS signal sources.

• Anti-Interference Processing Component: The core algorithm unit, realizing real-time identification and suppression of various jamming and deception signals, ensuring signal purity.

• Receiver Module: Outputs standard NMEA-0183 positioning and timing data, realizing high-precision and stable PNT information output.

Key Features

• Multi-System Signal Compatibility: Supports simultaneous reception of BDS_B1, GPS_L1 and GLONASS_G1 signals, covering mainstream global navigation systems with strong universal adaptability.

• Powerful Multi-Type Anti-Jamming Capability: Effectively suppresses 3 broadband interference sources, and resists multiple complex interferences such as sweep frequency interference, pulse interference and mixed combined interference, with a high anti-interference signal ratio of ≥80dB.

• Professional Anti-Spoofing Protection: Built-in independent GNSS anti-deception function, which can identify and filter fake navigation signals to prevent positioning deviation and equipment failure caused by spoofing attacks.

• High-Precision PNT Output: Maintains centimeter-level stable positioning and accurate timing output even in strong electromagnetic interference and adversarial environments, ensuring mission reliability.

• Ultra-Light & Compact Integration: Miniaturized 65×65×22mm body with weight less than 150g and power consumption lower than 8W, perfectly matching SWaP requirements of UAVs and portable devices.

• Wide Voltage & High Stability: Supports 5V~12V wide DC voltage input, adapting to various power supply environments; works stably in -40℃~+85℃ extreme temperature scenarios.

• Standard Industrial Interface: Equipped with standard RS-232C serial port and NMEA-0183 protocol output, convenient for secondary development and seamless docking with industrial control and navigation systems.

Application Scenarios

• UAV Navigation Security: Provides stable anti-jamming and anti-spoofing protection for industrial and military drones, preventing loss of control and drift caused by navigation interference.

• Vehicle-Mounted PNT Equipment: Applied to special vehicles, patrol vehicles and intelligent navigation equipment to ensure accurate positioning in complex urban electromagnetic environments.

• National Defense & Military Equipment: Suitable for military reconnaissance, positioning and timing equipment, adapting to high-interference battlefield adversarial environments.

• Precision Industrial Monitoring: Used for outdoor high-precision positioning equipment, power monitoring and petrochemical fixed monitoring terminals to ensure long-term stable operation.

• Border & Security Facilities: Provides reliable navigation and timing support for border defense monitoring, security early warning and other key equipment.
