Product Introduction

       This high-performance DJI & RID integrated decoding module is a dedicated RF sensing hardware for low-altitude UAV defense systems, built with FPGA signal processing architecture and 61.44MHz sampling rate to deliver top-tier DJI drone capture capability.
It fully decodes unencrypted DJI O3 series signals, directly outputting drone coordinates, pilot location, home point, serial number, drone model, altitude and flight speed. For the latest encrypted DJI O4 drones (Mini4, Air3s, Avata2, Mavic4 Pro), the module outputs complete 176-byte encrypted raw data, which can be fully decrypted via our dedicated server to retrieve full flight & identity information.
       Compliant with international and domestic drone remote identification standards ASTM F3411-22a & GB42590-2023, it independently captures broadcast RID signals with 1–5km detection distance. All signal analysis and decoding processes run locally on the module without external computing equipment. Compact low-power design supports seamless integration into fixed-site monitoring stations, vehicle-mounted anti-drone equipment and portable detection terminals, with data output via UDP/TCP Ethernet or 3.3V TTL serial port for easy secondary development.

Key Features

1、FPGA high-speed processing, 61.44MHz sampling rate, industry-leading DJI signal decoding performance
2、Full DJI protocol compatibility: O3 unencrypted & O4 encrypted drone signal capture
3、Complete O3 decoded data: drone GPS, pilot GPS, home location, serial number, model, altitude, speed, RSSI
4、O4 encrypted solution: output 176-byte ciphertext, fully decrypt via our official server to get all flight & identity data
5、Dual-standard RID reception: support ASTM F3411-22a (FAA) & GB42590-2023 (China UAS Remote ID standard)
6、Local onboard processing, no extra host PC required for signal decoding
7、Long detection distance: DJI drone detection range 2km–20km; RID broadcast detection range 1km–5km
8、Multiple data output interfaces: UDP/TCP network, 3.3V TTL serial port (115200 baud rate)
9、Miniature low-power hardware: DC 5V power supply, only 3.3W power consumption

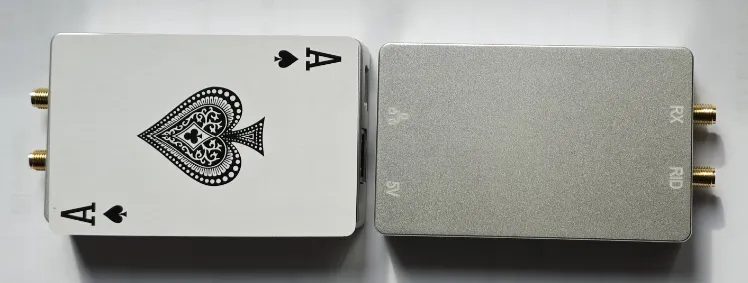

10、Ultra-compact size: 89×55×18mm, easy embedded integration into finished C-UAS devices
11、Real-time structured data output, supports rapid docking with user self-developed monitoring platforms

Complete Technical Specifications

Item	Technical Parameter
Core Processing	FPGA chip, 61.44M sampling rate
Supported DJI Protocols	DJI O3 (Unencrypted), DJI O4 (Encrypted)
DJI Detection Range	2km ~ 20km (Depends on antenna gain)
RID Compliance Standard	ASTM F3411-22a, GB42590-2023
RID Detection Range	1km ~ 5km
Decoded Output Data (O3)	Drone GPS, Pilot GPS, Home GPS, Serial Number, Drone Model, Altitude, Flight Speed, RSSI, Frequency
O4 Encrypted Output	176 bytes encrypted raw data (Decrypt via matching server)
Communication Interfaces	UDP/TCP Ethernet, 3.3V TTL serial (115200 baud)
Power Supply	DC 5V
Power Consumption	3.3W
Physical Dimension	89mm × 55mm × 18mm
Working Mode	Standalone decoding, all processing onboard

Application Scenarios

Main Deployment & Integration Fields

• Airport Low-Altitude Airspace Safety Monitoring
• Military Base, Prison, Government Building Anti-UAV Defense System
• Stadium, Exhibition, Large Event Temporary UAV Supervision
• Critical Infrastructure Protection: Power Plant, Oil Depot, Port, Nuclear Facility
• Vehicle-Mounted Mobile Drone Early Warning Equipment
• Portable Handheld Drone Detector Hardware Core
• C-UAS System Integrator Specialized DJI Decoding Sensing Module
• UAV Regulatory Supervision Equipment for Civil Aviation Authorities
• Laboratory RF Protocol Decoding & Drone Signal Research Platform
