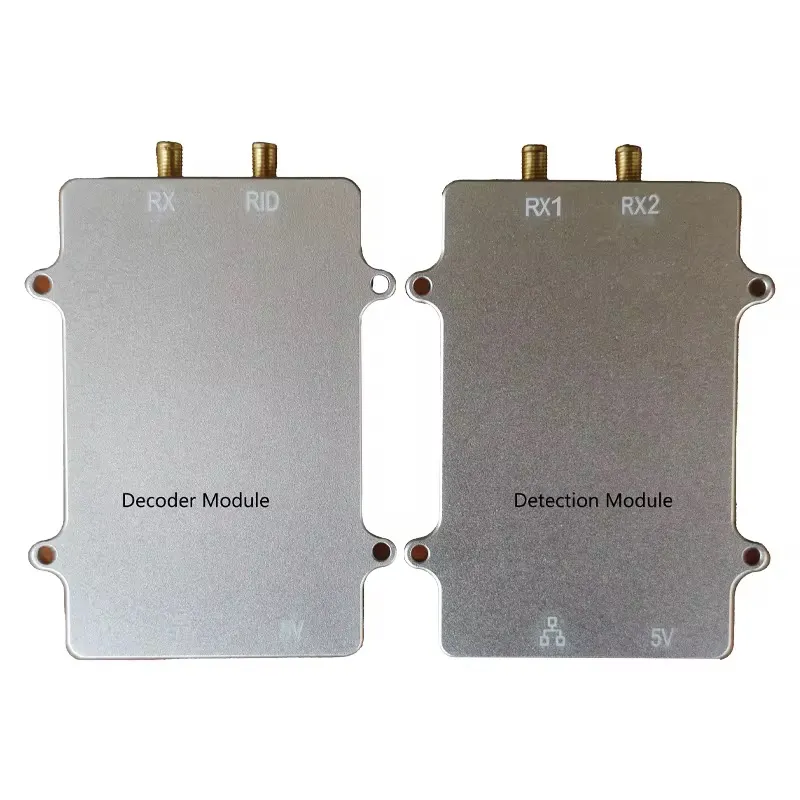

PL-DTM01-Drone Detection Module Specification
Main Feature
· Support DJI, Autel, Harbosen, Lightbridge, enhanced WIFI, Analog FPV, Lora, Modified LTE etc,
· output the detection result and real-time spectrum data.
· All processing on device.
· Frequency Range：70M-6G
· GPIO controlled 8/16 Antenna Direction Finding.
· Detect Range: 1km-10km
· UDP/TCP/ ttl 3.3v with 115200
· 5V, 3.3W。
· 89mm * 55mm * 18mm
Signal Type
|
Signal Type
|
Drone Model
|
|
DJI_ID
|
DJI drone ID
|
|
Lightbridge type1
|
DJI P4, Spark
|
|
Lightbridge type2
|
Autel Evo2V2, Feimi
|
|
eWifi_5M
|
DJI Mini1,Air1
|
|
eWifi_10M
|
HUBSAN Zino, HUBSAN Eagle,
|
|
PAL Analog
|
Analog PAL
|
|
NTSC Analog
|
Analog NTSC
|
|
DJI_OC123 10M
|
Mini 2,3, 4k, Air 2, 3, Mavic 2,3, Avata, P4-2.0
|
|
DJI_OC123 20M
|
Mini 2,3, 4k,Air 2, 3, Mavic 2,3, Avata, P4-2.0
|
|
DJI_O3+
|
Mavic 3 series
|
|
DJI_O4_type
|
Mini4, Air3s, Avata2, Neo
|
|
Autel_type1/ Autel_type2/ Autel_type3/ Autel_type4/ Autel_type5/
|
Autel nano, nano+, lite, lite+, Evo2_V3, MAX4T,
|
|
Datalink
|
P900/P840/Mavlink
|
|
O3+_ofdm_datalink
|
DJI and Autel remote control and some datalink
|
|
LTE_type0
|
LTE modfied
|
|
LORA
|
RadioMaster , Lora Signal, ExpressLRS，T900
|
|
Walksnail
|
Walksnail, Avatar
|
|
DJI_O4+
|
Mavic 4 pro
|
Command
|
Command
|
Explanation
|
|
start
or
start -freq 0
|
Include frequency band
2384 - 2485
5150-5260
5725-5940
|
|
start -freq 1
|
430-440
825-845
902-928
1200-1445
2384 - 2485
5150-5260
5725-5940
|
|
start -freq 2
|
Only 8 DJI ID frequency
|
|
start -freq 3
|
430-440
825-845
900-930
1000-1700
2000-2500
3300-3500
4900-6000
|
|
start -freq 4
|
400-1700
2000-2500
3000-3500
4900-6000
|
|
start -freq 8
|
825-850
902-928
1400-1450
2384 - 2485
5150-5260
5725-5940
|
|
start -freq xxxx
|
Lock frequency
start -freq 2450
|
|
-gpio x
|
gpio value fixed to x
|
|
Custom band:
start -band 430,440,-band 830,845, -band 902,928, -band 1430,1445, -band 2384,2485, -band 5150,5260,-band 5725,5940,
|
|
reboot
|
Reboot device
|
|
start -heart_beat 0
|
Close heart beat
|
|
start -gain xx
|
Gain range [10 70]
|
|
-set_ant xxxx
|
Antenna enable bit mask
|
|
-rx2 x
|
X=1 use RX2 for lower frequency range
Must config_2r2t beforehead
|
|
-rx2_freq xxxx
|
Frequency large than xxxxMhz, use RX1
Frequency less than xxxxMhz, use RX2
|
|
config_2r2t
|
Turn on RX2
Use RX2 will increase 0.5W compared to use RX1 only
|
|
config_1r1t
|
Close RX1,
|
|
-setip
|
Change ip，for example -setip 192.168.2.2
|
|
-fpv_only 1
|
Scan FPV only,
|
|
-fpv_only 0
|
Close Scan FPV only,
|
|
-freqs f1,f2,f3,…,fn,
|
Lock multiple frequenciese
|
|
-turn_on_gpio x
|
Gpio x pull up
|
|
-turn_off_gpio x
|
Gpio x pull down
|
|
-fft 1
|
Output real-time spectrum
4 byte frequency, 2048 FFT value.
|
|
-fft 0
|
Close real-time spectrum output
|
Case 1：
· Autel MAX4T，DJI Mini3 Pro, Air 3s
Case 2：
· FPV with NTSC analog
· DJI phantom 4
Amplitude Direction Finding with 8 antenna
· GPIO0, GPIO1 GPIO2 control SP8T electronic switch, only the 2nd port attached a antnna
