Product Overview

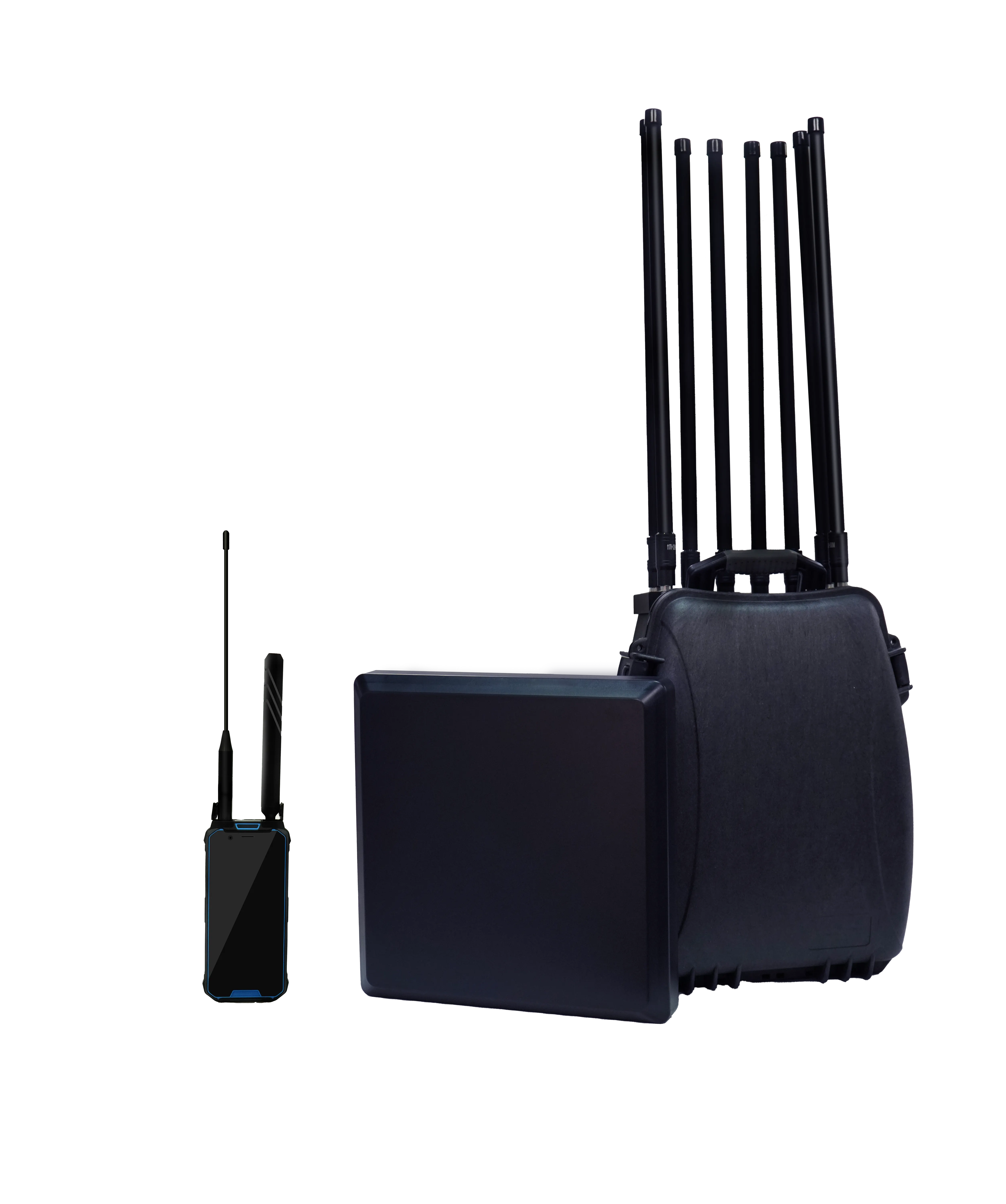

Meet the 8-Band Backpack-Style Drone Suppressor — a high-power, portable, and professional UAV jamming device built for precise drone signal interference. Equipped with 8 groups of directional antennas and a maximum 360W total power consumption, this all-band drone jammer covers mainstream drone control, video transmission, and navigation frequency bands. Adopting UHF broadband seamless jamming technology, it delivers stable, long-distance interference performance, widely applicable for security defense, site protection, privacy security, and anti-illegal drone surveillance scenarios.

Designed with a lightweight backpack structure, the device is easy to carry and deploy freely. It features one-key simple operation, built-in rechargeable battery, and efficient heat dissipation system, supporting long-time stable outdoor and indoor work, becoming your reliable anti-drone security equipment.

Core Highlights

• 8 Full-Band Coverage: Covers 400MHz–6GHz full mainstream drone frequency bands, compatible with civilian, industrial, police and homemade drones

• 360W High Total Power: Max interference distance up to 500–1500 meters, strong anti-interference and stable shielding effect

• Directional Antenna Design: 8 SMA/N type directional antennas, targeted signal suppression, higher energy efficiency

• Precise Frequency Interference: Only shields drone control & video transmission signals, no impact on other public communication frequencies

• Portable Backpack Structure: Integrated body with built-in battery, easy to carry for mobile operation

• Safe & Stable Operation: Imported chips + slow start circuit design, effectively avoid ignition and module burnout

• Intuitive Operation: Single switch control + real-time battery power display, simple for beginners to use

• Durable Heat Dissipation: All-aluminum housing + built-in fan cooling system, support long-term continuous work

Product Core Characteristics

1. Adopts advanced UHF broadband seamless jamming technology, realizing gap-free shielding of target drone frequency bands with stable interference effect.

2. Simplified single-switch output control design, matched with real-time battery power display, users can grasp the working status at any time.

3. Adopts precise frequency segmentation technology, directional interference on dedicated drone signals, will not interfere with mobile communication, household electrical signals and other public frequencies.

4. Equipped with imported core devices and professional slow start circuit, effectively eliminate instantaneous ignition phenomenon caused by mechanical switch start, greatly extend equipment service life.

5. Built-in high-capacity lithium battery, supporting 1 hour continuous working time after full charge, full charging time is about 6 hours.

6. Rich interface configuration: 8 professional SMA/N type directional antenna interfaces for different frequency bands, 1 DC28V power charging interface.

Complete Technical Parameters

Frequency Band	Working Frequency Range	Power (dBm)	Single Band Output Power
433MHz	400–470MHz	47dBm	50W
500MHz	480–525MHz	47dBm	50W
900MHz	850–940MHz	47dBm	50W
1.2GHz	1160–1280MHz	47dBm	50W
1.5GHz	1550–1620MHz	47dBm	50W
2.4GHz	2380–2500MHz	45dBm	30W
5.2GHz	5150–5350MHz	47dBm	50W
5.8GHz	5700–6000MHz	45dBm	30W

Basic Parameters

• Total Power Consumption: 360W

• Omnidirectional Countermeasure Distance: 500–1500 meters

• Power Supply Mode: AC220V to DC24V power supply, DC28V charging interface

• Working Time: 1 hour (full battery)

• Charging Time: 6 hours

• Product Weight: 16KG

• Product Size: 370*240*510mm

• Customization: Support frequency band customization

Professional Usage Instructions

1. Standard Operation Precautions

- Please install and tighten all antennas before powering on the device. Never remove antennas during operation to avoid module damage.

- Connect the battery handle correctly, and check the battery power display to confirm normal power supply.

- The built-in fan will automatically work during operation to ensure heat dissipation, please keep the equipment ventilated.

- The device supports DC28V and AC220V dual power supply, please confirm the power mode before use to avoid misconnection and burnout.

- Outdoor use needs waterproof protection, avoid long-term direct sunlight, and place in an open and barrier-free area for better effect.

- For optimal interference effect, place the antenna vertically facing the target drone.

2. Frequency Band Matching Operation Guide

- Force DJI Drone Landing: Turn on 1.5G + 2.4G + 5.8G frequency bands

- Force DJI Drone Return: Turn on 2.4G + 5.8G frequency bands

- Force Passing Drones Landing: Turn on 1.5G + 2.4G + 5.2G + 5.8G frequency bands

- Force Passing Drones Return: Turn on 2.4G + 5.2G + 5.8G frequency bands

- 400M Band: Applicable to homemade drones, TV remote controls, car key signal interference

- 900M Band: Professional frequency for industrial drones, police-grade and large-scale drones

- 1.2G Band: Covers Beidou navigation frequency, suitable for future UAV navigation signal suppression

3. Daily Maintenance Note

To maintain battery activity and service life, please charge the device once every half month during idle time.

Technical Note: The shielding radius is affected by path attenuation and remote control signal strength. The actual coverage distance is determined by output channel power, ambient signal level and antenna gain.

Frequency Distance & Attenuation Reference Table

Distance (m)	900MHz Attenuation (dB)	1575MHz Attenuation (dB)	Distance (m)	2400MHz Attenuation (dB)	5800MHz Attenuation (dB)
1	38	44	25	66	72
2	44	50	30	67.5	73.5
3	48	54	35	69	75
4	50	56	40	70	76
5	52	58	45	71	77

FAQ

Q1: Will this drone suppressor harm human body or mobile phones?

A: The equipment emits low-strength electromagnetic signals, which cause no harm to the human body. It only interferes with the communication signals between drones and remote controllers, without damaging the drone equipment itself or affecting normal use of mobile phones and other daily electronic devices.

Q2: Is there a difference in working distance between indoor and outdoor use?

A: Yes. Outdoor open environments have no signal obstruction, so the interference and shielding effect is better with longer effective distance. The actual working distance is affected by electromagnetic environment and surrounding obstacles.

Q3: Is the overheating of the casing during long-time operation harmful to the device?

A: Slight heat generation during operation is a normal phenomenon. Adopting all-aluminum heat dissipation housing + built-in fan heat dissipation system, the device supports stable long-term continuous operation without machine damage or performance attenuation.
