Product Overview

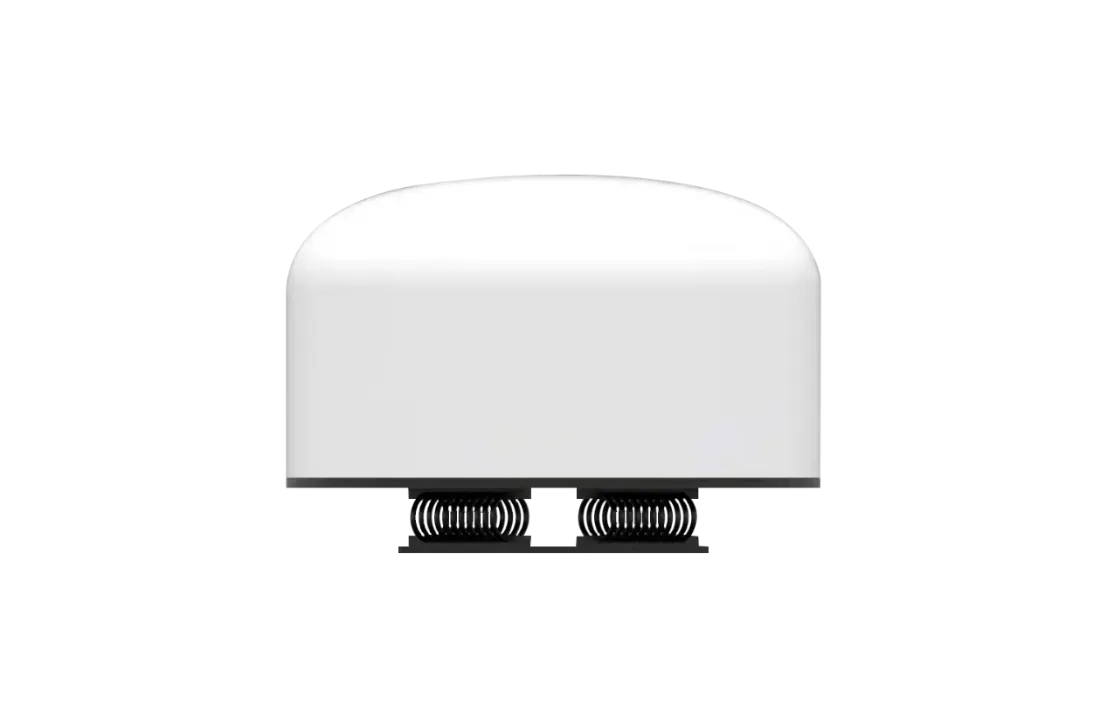

The PL-VDC1 is a high-performance vehicle-mounted drone detection and jamming integrated device, integrating professional drone detection, precise positioning, and intelligent jamming countermeasure modules. It enables full-process management of invasive drones, including automatic detection, identification, positioning, tracking, and interference disposal.

Equipped with in-depth drone signal analysis and data mining technology, the system can capture multi-dimensional drone information within the monitoring range, covering device serial number, model, real-time position (longitude, latitude, azimuth), flight speed, altitude, takeoff & return points, flight trajectory, and remote control position data. Adopting an integrated industrial concealed design, the device features strong environmental adaptability and flexible deployment, supporting vehicle-mounted installation and fixed erection methods.

Widely applicable to low-altitude security scenarios including large-scale event security, public security patrols, border defense, VIP escort protection, military management zones, power & petrochemical industrial parks, and airport security. It supports offline standalone operation, rapid flexible deployment, and adaptive response to diverse complex security scenarios.

Core Product Technical Parameters

All standardized performance, mechanical, electrical and environmental parameters of the PL-VDC1 drone detection and jamming integrated device are sorted below for quick inquiry:

Parameter Category		Technical Index	Specification Value	Remarks
Detection & Positioning Performance	1	Detectable Drone Types	DJI, AUTEL, Dahua, YUNEEC, Hubsan, Powervision, Tello, Xiaomi, FPV, self-made traversing & WiFi drones	Covers mainstream market models
	2	Localizable Drone Models	DJI Mavic, Air, Mini, FPV, Avata and other DJI series models	Supports OcuSync protocol devices
	3	Detection Frequency Band	100MHz~6GHz	Full-band coverage
	4	Detection & Positioning Distance	1~5km	Varies with environmental conditions
	5	Detection Height	0m~1000m	Full low-altitude coverage
	6	Simultaneous Detectable Targets	≥10 sorties	Multi-target monitoring
	7	Simultaneous Trajectory Tracking Display	≥5 tracks	Real-time trajectory presentation
	8	Azimuth Error	≤1° (RMS)	High-precision positioning
	9	Positioning Accuracy	≤10m	Stable positioning data
	10	Detection Success Rate	≥97%	High stability operation
	11	Identification Response Time	≤3s	Ultra-fast response
Jamming Countermeasure Performance	1	Operation Mode	Radio jamming suppression	Active interference defense
	2	Jamming Target	UAV image transmission link, flight control link, navigation signal	Full link suppression
	3	Jamming Frequency Band	900MHz、2.4GHz、5.2GHz、5.8GHz	Covers mainstream drone frequency bands
	4	Output Power (Average)	Channel 1: (42±2)dBm; Channel 2: (44±2)dBm; Channel 3: (46±2)dBm; Channel 4: (44±2)dBm	Stable power output
	5	Effective Jamming Distance	1km-2km	Varies with environment & drone model
	6	Jamming Mode	Directional + Omnidirectional	Dual-mode flexible switching
Mechanical Parameters	1	Host Weight	≤30kg	Lightweight host design
	2	Host Dimension	Φ600mm*H420mm (±2mm)	Compact integrated structure
Electrical Characteristics	1	Overall Power Consumption	Detection only: 70W±5W; Full jamming mode: 1500±5W	Energy-saving adjustable power
	2	External Power Supply	AC 100~240V	Global universal voltage
Environmental Adaptability	1	Working Temperature	-20℃ ~ 65℃	Adapt to harsh climates
	2	Protection Grade	IP65	Dustproof & waterproof

Product Composition

The PL-VDC1 complete set of equipment consists of 5 core components, with a complete configuration for plug-and-play and quick deployment:

Serial Number	Component Name	Quantity	Unit
1	PL-VDC1 Device Host	1	pcs
2	Power Box	1	pcs
3	Heavy Load Cable	1	pcs
4	Mounting Bracket	1	pcs
5	Complete Accessories	1	pcs

Core Functions

1. Basic Detection & Countermeasure Functions

• Full Drone Detection & Identification: Automatically detects and identifies invading drones, accurately capturing brand, model, working frequency and other core device information, covering almost all mainstream civilian drone models on the market.

• Drone Precise Positioning: Realizes high-precision positioning for DJI series drones, displaying real-time longitude & latitude, azimuth, equipment distance, flight speed and altitude data intuitively.

• Pilot Remote Control Positioning: Tracks and locates the remote control end of DJI drones, feeds back the real-time position, azimuth and relative distance of the operator, realizing "drone + operator" dual positioning.

• Unique ID Recognition: Identifies the exclusive serial number of DJI drones to realize accurate device identity confirmation and traceable supervision.

• Integrated Detection & Jamming: Automatically triggers jamming countermeasures after detecting and confirming invasive drones, realizing one-click active defense.

• Multi-Target Trajectory Tracking: Supports simultaneous positioning and tracking of multiple drones, and displays multiple flight trajectories in real time to monitor low-altitude dynamic situations in all directions.

2. Intelligent System Functions

• Black & White List Management: Distinguishes cooperative (whitelist) and non-cooperative (blacklist) drones. The system will shield whitelist drones without false alarms, and supports trusted labeling of authorized devices.

• Intrusion Audio-Visual Alarm: Triggers automatic audio and visual alarm immediately once illegal drone intrusion is found, reminding security personnel of hidden dangers in real time.

• Flight Trajectory Playback: Supports historical drone flight trajectory playback, helping staff analyze intrusion paths, flight habits and other historical data for subsequent risk assessment.

• Complete Detection Records: Automatically stores all historical detection data including drone serial number, model, frequency and intrusion time, realizing full data traceability.

• Visual Data Analysis: Built-in data statistics function, supports thermal maps, line charts and other visual forms to display drone activity data, facilitating data analysis and sorting.

• Multi-Map Switching: Compatible with Gaode, Bing, Baidu and other mainstream electronic maps, realizing flexible switching and adapting to different regional usage scenarios.

Note: Partial positioning, ID identification and tracking functions are only applicable to DJI series drones with OcuSync protocol.

Product Advantages & Features

• Integrated Concealed Design: All functional modules are highly integrated in a protective shell with low wind resistance design. It does not affect the driving stability and safety of the vehicle, with a concealed and beautiful appearance.

• Mobile High-Speed Operation: Supports normal detection and jamming operations during high-speed vehicle movement, adapting to mobile patrol and mobile security scenarios.

• Full-Model Recognition: Compatible with mainstream drone brands including DJI, AUTEL, Dahua, YUNEEC, covering FPV, self-made machines, WiFi drones and most civilian drone models on the market.

• Passive Silent Detection: Adopts pure passive detection technology, no electromagnetic signal emission, zero electromagnetic pollution, safe and environmentally friendly, not easy to be detected and interfered.

• 24/7 All-Weather Operation: Supports 7*24 hours continuous uninterrupted work, adapts to complex electromagnetic environments and harsh weather, and provides 360° all-round low-altitude security protection.

• Multi-Device Network Deployment: Supports multi-unit networking connection with the background management platform, realizing large-area regional coverage and meeting the security needs of large-scale venues and wide-area defense scenarios.

Safety Compliance Standards

1. Electromagnetic Compatibility

The equipment passes professional electromagnetic compatibility tests, with stable anti-interference ability. It will not interfere with the normal operation of surrounding electronic equipment, and can work stably in complex electromagnetic environments.

2. Electrical Safety

Built-in overvoltage, overcurrent and short-circuit protection modules, compatible with global universal voltage, with safe and stable power supply system, no electrical safety hazards during long-term operation.

3. Environmental Safety

IP65 high-level protection grade, dust-proof and waterproof, resistant to high temperature, low temperature and other harsh environments. Passive detection design ensures zero environmental pollution and meets outdoor long-term deployment requirements.
